首頁 > 產品中心 > 內燃叉車 > FGL20/25

產品介紹

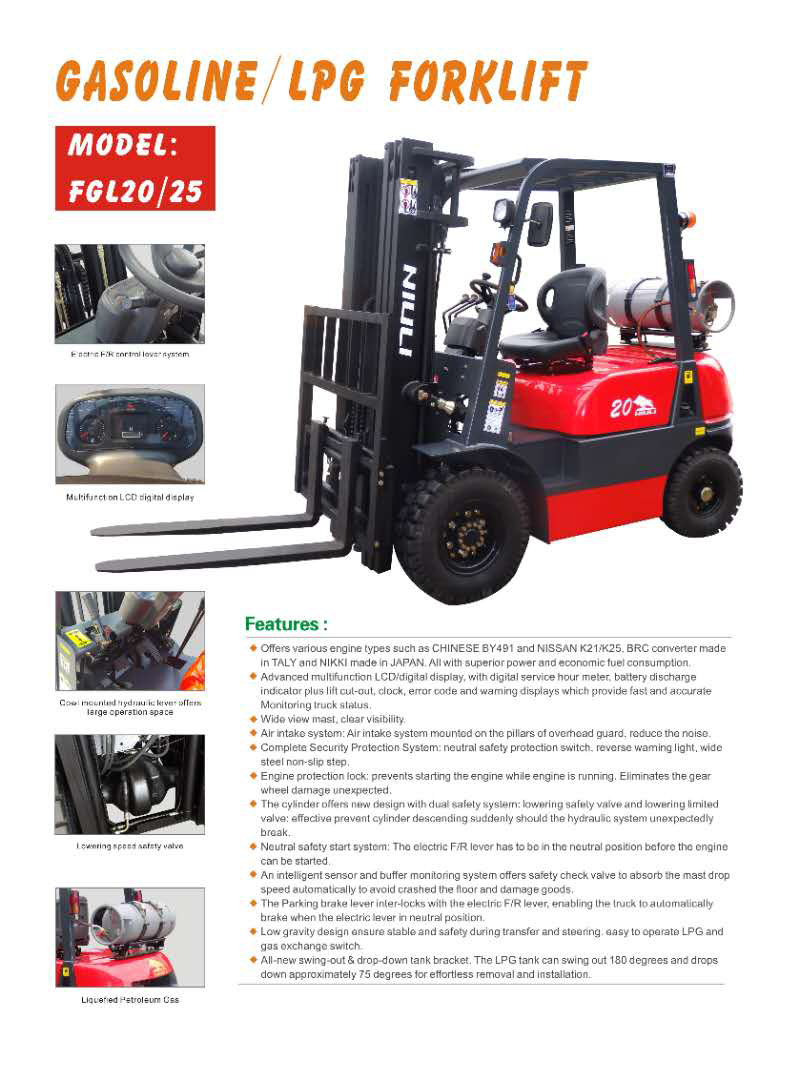

提供中國BY 491、日產K21/K25、TALY BRC變流器、日本NIKKI等各種發動機類型，均具有優良的動力性和經濟性油耗。

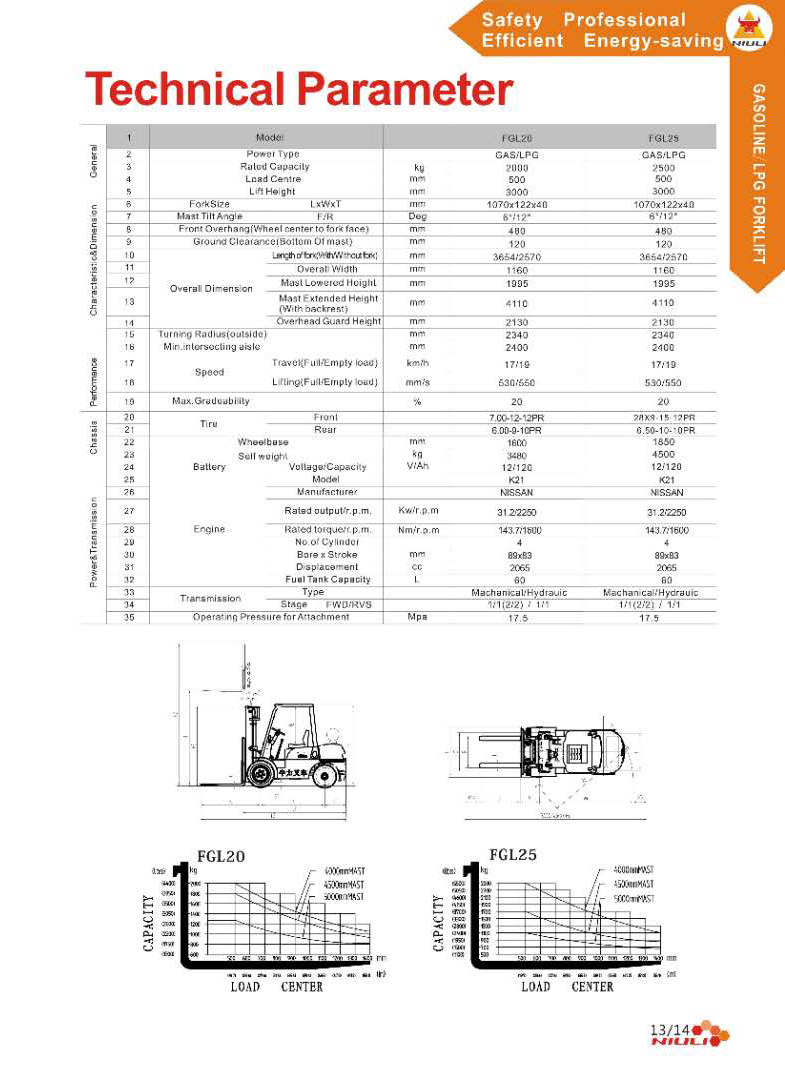

產品參數

Model			Unit	FGL20	FGL25
Power Type				GAS/LPG	GAS/LPG
Rated Capacity			kg	2000	2500
Load Centre			mm	500	500
Lift Height			mm	3000	3000
Fork Size	LWT		mm	107012240	107012240
Mast Tilt Angle	F/R		Deg	6°/12°	6°/12°
Front Overhang(Wheel center to fork face)			mm	480	480
Ground Clearance(Bottom Of mast)			mm	120	120
Overall Dimension	Length of fork(With/Without fork)		mm	3654/2570	3654/2570
	Overall Width		mm	1160	1160
	Mast Lowered Height		mm	1995	1995
	Mast Lowered Height(With backrest)		mm	4110	4110
	Overhead Guard Height		mm	2130	2130
Turning Radius(outside)			mm	2340	2340
Min.intersection aisle			mm	2400	2400
Speed	Travel(Full/Empty load)		km/h	17/19	17/19
Speed	Lifting(Full/Empty load)		mm/s	530/550	530/550
Max.Gradeability			%	20	20
Tire	Front			7.00-12-12PR	28*9-15-12PR
Tire	Rear			6.00-9-10PR	6.50-10-10PR
Wheelbase			mm	1600	1850
Self weight			kg	3480	4500
Battery	Voltage/Capacity		V/Ah	12/120	12/120
Engine	Model			K21	K21
	Manufacturer			NISSAN	NISSAN
	Rated output/r.p.m.		Kw/r.p.m	31.2/2250	31.2/2250
	Rated torque/r.p.m.		Nm/r.p.m	143.7/1600	143.7/1600
	No.of Cylinder			4	4
	Bore × Stroke		mm	89*83	89*83
	Displacement		cc	2065	2065
	Fuel Tank Capacity		L	60	60
Transmission	Type			Machanical/Hydrauic	Machanical/Hydrauic
Transmission	Stage	FWD/RVS		1/1(2/2) / 1/1	1/1(2/2) / 1/1
Operating Pressure for Attachment			Mpa	17.5	17.5

產品詳情
